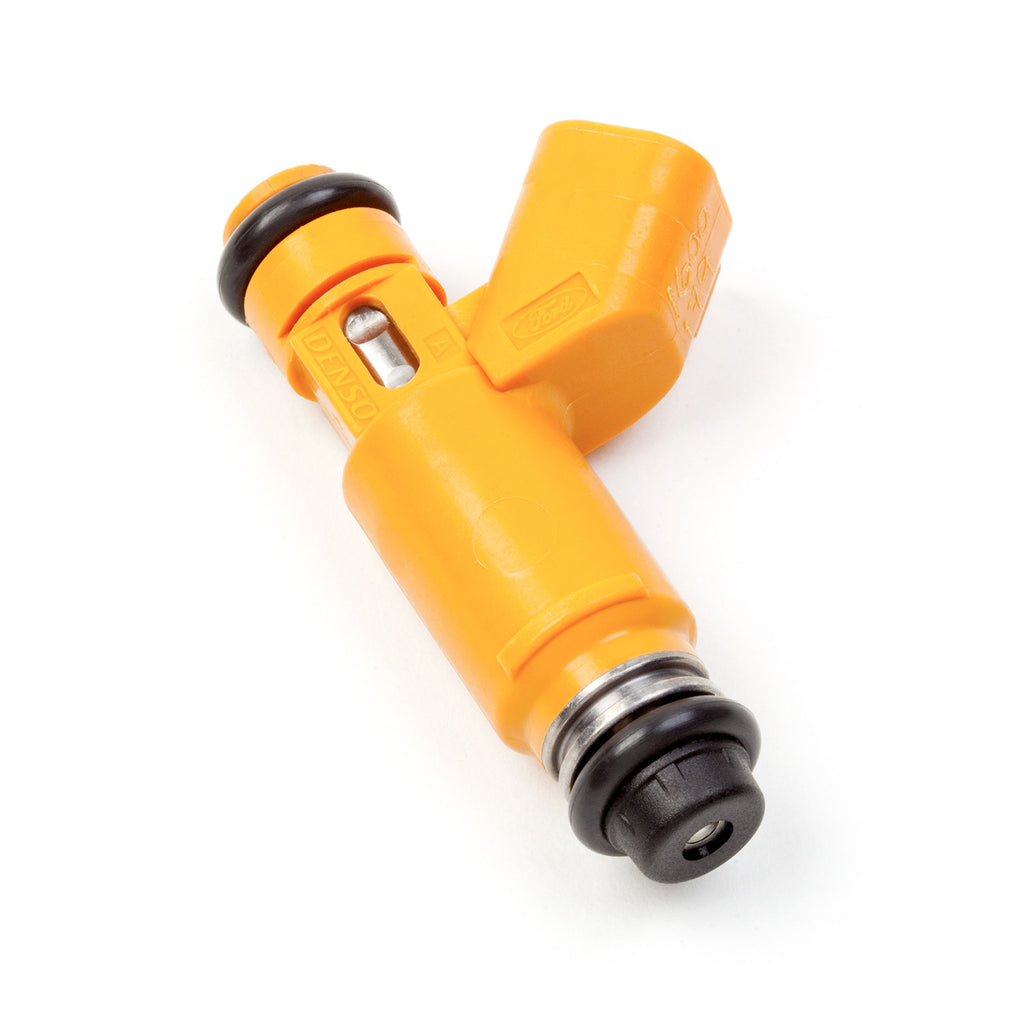

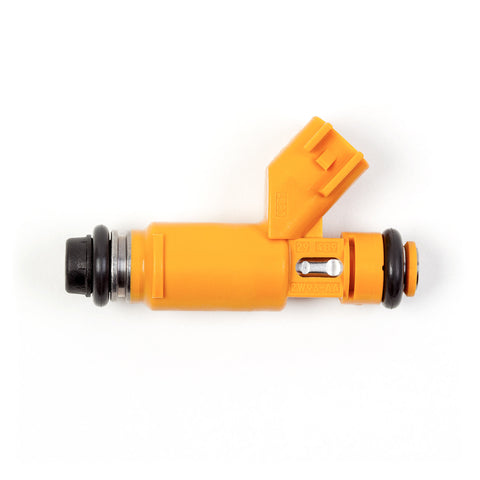

Denso E85, Asphalt Series Fuel Injectors
|
Configuration: |
Top-Feed, US/Euro, Standard Length |
|
Application: |
Universal |
|
Usage: |
Racing & Off-Road Motorsport Use |
Asphalt Series fuel injector data:
- 100% stainless steel internal parts are corrosion resistant
- Compatibility with all racing fuels including, ethanol, E85, MTBE, oxygenated fuels and methanol
- Individual dynamic testing at multiple pulse-widths
- Sets are Flow Balanced and Matched to within 1.5% (flow data report included)
- Excellent spray pattern with complete fuel atomization
- Linear performance for optimized idle and tuning
- Technical assistance and tuning data available
- 3-year, unlimited-miles warranty
- Made in the U.S.A.
Specs:
|
Fuel Pressure Range: |
Min. 3 Bar (43.5 psi) – Max. 8 Bar (116.0 psi) |
|
Flow Rates: |
Nominal flow rates measured in cc/min @ 3.0 Bar (43.5 psi) |
|
Minimum Pulse Width: |
1.9 ms |
|
Coil Impedance: |
High Impedance, 12.5 Ohms |
|
Fuel Compatibility: |
All fuel types |
|
Maximum Duty Cycle: |
95% |
|
Electrical Connector Type: |
USCAR |
|
Upper O-ring: |
14mm, Viton Material |
|
Lower O-ring: |
14mm, Viton Material |
